S90 Series Thermal Break Casement Window
The width of the frame is 90mm,thermal break Vertical isotherms double glass structure,Different heat insulation strips can be selected to replace the 80 series.
Features
Advantages: The inner and outer frames and fans are flush, resulting in an extremely beautiful indoor and outdoor visual effect. The glass is designed with three glass and two chambers, greatly improving performance. The profile structure is enclosed in the chamber, with adhesive corner codes, and the overall toughness is fully stretched.
Multi-stage drainage design to avoid backflow of water, submersible drainage outlet, to prevent mosquitoes from crawling in, open drainage can be selected
Product Configuration
Wall thickness: 1.5mm / 2.0mm
Hardware: Jianlang Group European standard system inward opening / inward tilting, outward opening / top hanging kit
Glass: 5+12A+5+12A+5mm
Insulation strip: 35.5mmPA66 nylon cavity insulation strip
Sealing strip: EPDM composite foam
Corner assembly method: Frame/sash glue injection corner code
Product Parameters
Air Tightness: Level 7 (GB/T7106-2008)
Water Tightness: Level 6 (GB/T7106-2008)
Wind Pressure Resistance: Level 8 (GB/T7106-2008)
Sound Insulation: Level 6 (GB/T8485-2008)
Thermal Insulation: level 7 (GB/T8485-2008)
Details

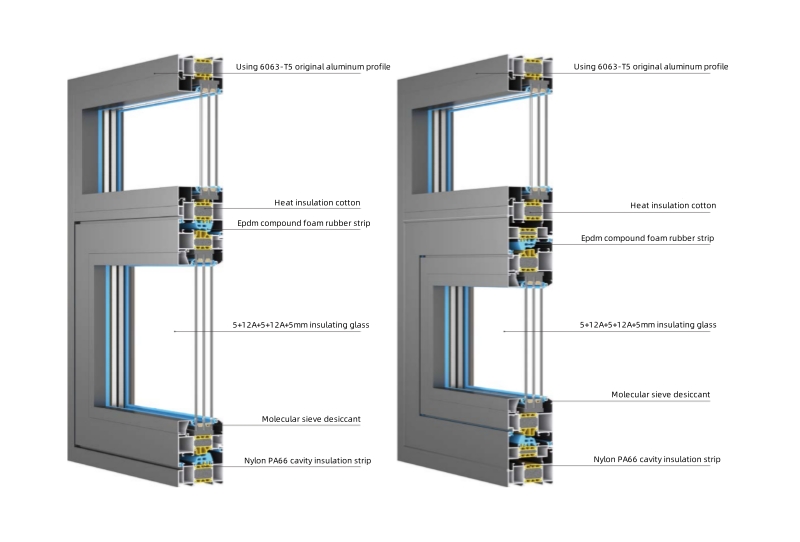

The S90 Thermal Break Casement System highlights its high-quality materials and robust structural design. The premium aluminum alloy, combined with thermal break technology, ensures exceptional thermal insulation and durability.
The Benefits Of Choosing Aluminum Windows
Durability: Aluminum windows are strong and corrosion-resistant, ensuring a long lifespan.
Lightweight: The material is easy to transport and install without compromising stability.
Energy Efficiency: Thermal break technology reduces heat transfer, lowering energy costs.
Low Maintenance: Excellent surface treatment makes them waterproof and resistant to fading and rust.
Design Flexibility: Customizable in various shapes, sizes, and colors to fit different styles.
High Security: Equipped with multi-point locking systems for enhanced security.
