E80 Series Two Track Thermal Break Sliding(new hidden row) 2.0 Series

The frame width is 80mm and it is thermal break double glass structure .European standard notch design,Hardware with strong compatibility,Low track design, barrier-free accessMulti - channel sealing design, making sealing perfect.

Contacts

Features

Frame Width: 80mm

Structure: Thermal break double glass

Advantages: Diversified design in appearance and function, novel visual effects, comprehensive upgrade in detail design, improved product performance, multi-level drainage design, avoiding water backflow, submersible drainage outlet, preventing mosquitoes from crawling in, optional open drainage.

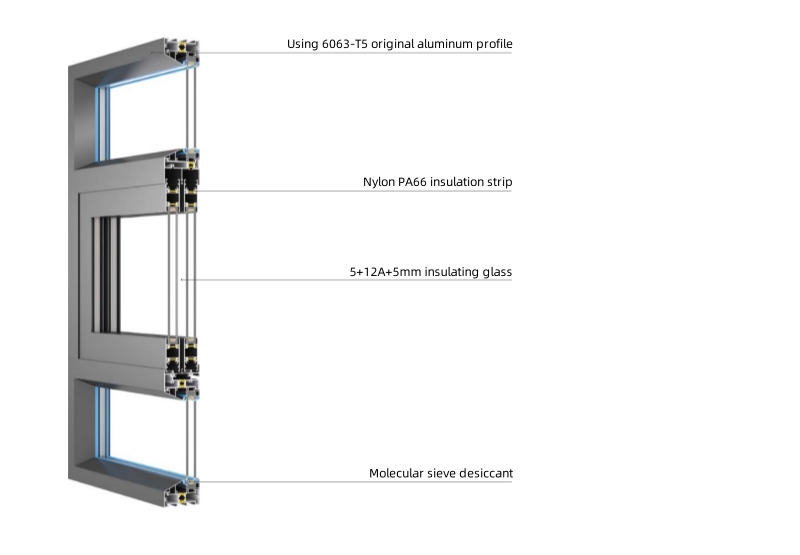

Product Configuration

Wall thickness: 1.4mm / 2.0mm

Hardware: Kin Long Group's new hidden-row push-pull kit

Glass: 5+12A+5mm

Insulation strip: 14.8/18.6 PA66 nylon insulation strip

Sealing strip: Windproof wool strips/anti-collision rubber strips

Corner assembly method: Frame embedded/corner code

Product Parameters

Air tightness: level 6 (GB/T7106-2008)

Water tightness: level 5 (GB/T7106-2008)

Wind resistance: level 6 (GB/T7106-2008)

Sound insulation: level 4 (GB/T8485-2008)

Thermal Insulation: level 6 (GB/T8485-2008)

Details

The E80 Thermal Break Sliding System highlights its high-quality materials and robust structural design. The premium aluminum alloy, combined with thermal break technology, ensures exceptional thermal insulation and durability.

The Benefits Of Choosing Aluminum Windows

Long-Lasting Strength: Aluminum windows are built to be both strong and corrosion-resistant, providing extended durability and reliability over time.
Lightweight Convenience: The lightweight nature of aluminum allows for easier transport and straightforward installation, all while ensuring structural integrity.
Energy-Saving Insulation: With thermal break technology, these windows help minimize heat transfer, contributing to significant energy savings and a more comfortable indoor climate.
Minimal Upkeep: Thanks to advanced surface treatments, aluminum windows resist water, fading, and rust, meaning less maintenance is required.
Versatile Design Options: Available in various shapes, sizes, and colors, aluminum windows offer flexible design choices to match any architectural style.
Enhanced Security Features: Fitted with multi-point locking mechanisms, these windows provide an added layer of security to protect your space.

Choose our aluminum alloy windows for durability and energy efficiency.

Trust us for lasting quality.

Hot Sales

ALUMINUM ALLOY DOOR

The thermally insulated aluminum door has many advantages. It is heat-insulating, energy-saving and comfortable; it has good sealing performance, blocking wind, rain and noise; it has high strength, is sturdy and durable, and does not deform; it has beautiful appearance, various colors and styles; it is airtight and watertight, and is rainproof, windproof and leakproof; it is energy-saving and environmentally friendly, and reduces energy consumption; it has a high safety factor and strong anti-theft performance. It is a high-quality choice for home furnishings.

E70 Thermal Break Casement Window/Top-Hung Windows

The width of the frame is 70mm, thermal break structure,and different heat insulation strips can be selected to replace the 80 series.Diversifed design of appearance and function, nove visual effect and comprehensive upgrade of detaildesign to improve product performance.

76 Series Narrow Edge Inner Casement Window

The width of the bezel is 76 mm for single casement and 86 mm for double inward,thermal break Vertical isotherms Multi-chamber double glass structure.

S90 Series Thermal Break Casement Window

The width of the frame is 90mm,thermal break Vertical isotherms double glass structure,Different heat insulation strips can be selected to replace the 80 series.

E110 series Thermal Break Casement Window

The width of the frame is 110mm,thermal break Vertical isotherms Multi- chamber double glass structure,Diferent heat insulation strips can be selected to replace the 115/120 series.

150 Thermal Break Lifting Windows

Advanced electric technology,combined with intelligent remote control, can easily control the opening and closing of the glass. A number of utlity models and patented designs are novel and practical,leading the industry trend.
